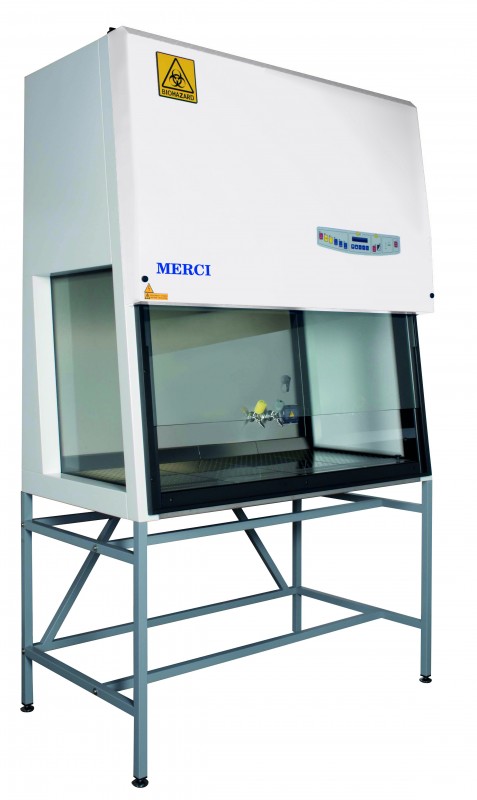

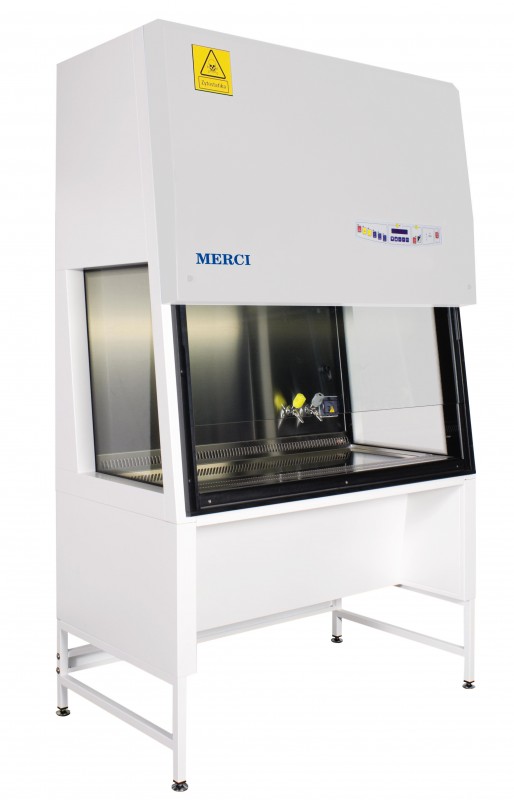

Laminar Box

II. Class – Biohazards

Laminar boxes II. Class are made for working needing vertical air flowing, for protecting of product and personnel from particular and bactericidal contamination. They fulfil the requirements of the norm ČSN EN-12469:2000

Models with vertical flowing – BIOHAZARDS (line SCS, line USC) are equipped with HEPA filters H 14 with effectiveness 99,999% for particles 0,3 µm, have electrical controlled sash window, split perforated worktop, two-line LCD touchscreen, audio-visual alarm and are equipped with one or more electric sockets. Laminar flowing will be ensured via two ventilators.

Models for vertical flowing – BOXES FOR WORKING WITH CYTOSTATIC (line TCS) are equipped with three types of HEPA filters: H 14 with effectiveness for particles 0,3 µm, HEPA Filter under the worktop, HEPA filter for exhaust, have electrical controlled sash window, no-split perforated worktop, two-line LCD touchscreen, audio-visual alarm and are equipped with one or more electric sockets. Laminar flowing will be ensured via two ventilators.

Accessories

Technical Specification

Laminar Box

II. Class – Biohazards

Basic parameters of laminar boxes II. class

Biohazards

Width of the box	1045, 1350, 1655 and 1960 mm
Height of the box	1545 mm
Depth of the box	810 and 855 mm
Width of the worktop	887, 1192, 1497 and 1802 mm
Worktop - material	stainless steel AISI 316L (SCS), stainless steel AISI 304L (UCS)
Back wall - material	stainless steel AISI 304L (SCS), steel with powder coating (UCS)
Number of ventilators	one (version I) or two (version II)
Model lines	SCS I, SCS II, UCS, SCS-Evo II

Boxes for working with cytostatic

Width of the box	1045, 1350 and 1960 mm
Height of the box	2345 mm
Depth of the box	855 mm
Width of the worktop	887, 1192 and 1802 mm
Worktop - material	stainless steel AISI 316L
Back wall - material	stainless steel AISI 304L
Number of ventilators	two
Model lines	TCS 3, TCS 4, TCS 6

Download

Laminar Box

II. Class – Biohazards

Catalog sheet (CZ)

Laminar Boxes II. class - biohazards

pdf [0.5 MB]
